Ergonomic workshop crane 01M5 Product Details

01M5 Hydraulic Rotating Counterweight Crane

01M5 Manual Rotating Counterbalanced Workshop Crane

01M5 mini mobile crane for lifting loads up to 500 kg

01M5 Counterweight Crane with Wheels and Adjustable Arm

01M5 ERGONOMIC WORKSHOP CRANE

LIFTING CAPACITY 1102 LBS

Max Capacity

1102 LBS

Max Overhang (inch)

80,71" INCH

Column

JIB ARM SWIVEL 360°

Max Height (inch)

131,89" INCH

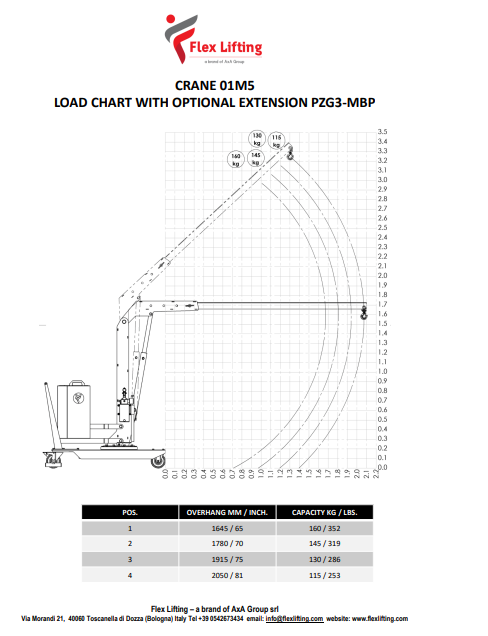

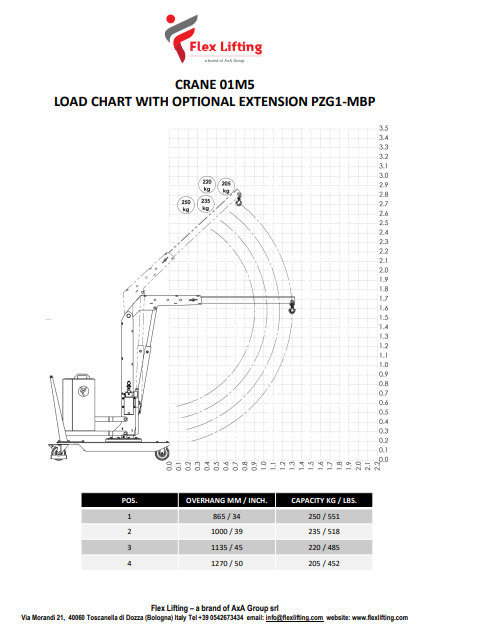

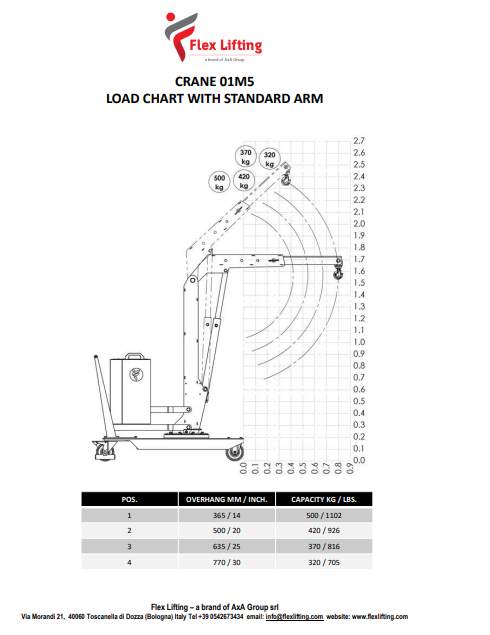

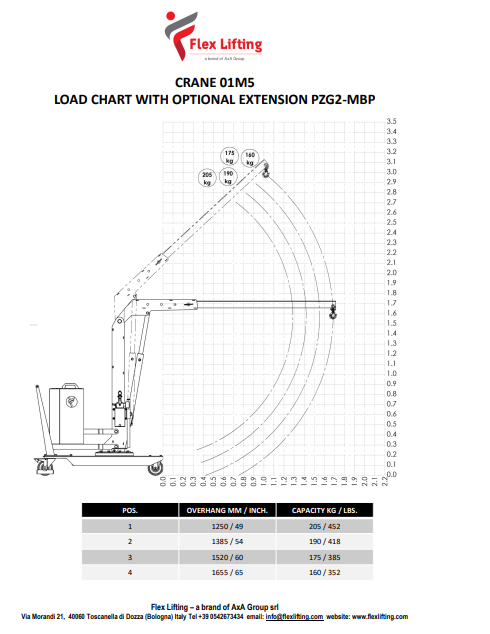

View Load Chart

The ergonomic mobile mini crane model 01M5 is equipped with a lever controlled fast and lightweight lift double action pump. The control descent knob make it possible to adjust the descent speed.

The ergonomic mobile mini crane 01M5 is part of a wide range of counterbalanced 360° swivel cranes with manual traction, with a maximum capacity up to 1102 lbs and outreach up to 80,71”. Hydraulic lever controlled or electric controlled.

They represent the most cost-effective and flexible solution for lifting and transporting loads in several applications such as machining centers and machine tools, delivery to assembly lines, assembly operations, goods handling. Thanks to their compact dimensions they are easily maneuverable even at full load and can be moved effortlessly in confined spaces. All components are made in Italy to ensure the highest construction quality and the absence of defects.

The hydraulic system is equipped with a lock valve that prevents the load from falling in case of accidental breakage of the pipes and a rough valve that prevents overloading of the crane. They are equipped with 2 high-capacity pivoting wheels with bumper mounts and parking brakes and with 2 fixed front wheels with bearings. The frame is made of painted steel and is equipped at the base with 2 useful forklift supports (to lift and transport the crane in complete safety on long distances. The sturdy push handle can be disassembled. There are also 2 handles to easily rotate the ballast. Swivel hook type. Rotating Jib arm lockable every 30°.

The arm is extendable in 4 positions and 3 types of optional arm extensions are available to get a maximum outreach of 80,71”.

AVAILABLE UPON REQUEST

Learn more

Product gallery

Mini gru 500 kg Flex Lifting modello 01M5 soluzioni di sollevamento mobili

01M5 mini gru contrappesata per sollevare 500 kg

01M5 mini gru dettaglio sistema di rotazione dotato di cuscinetti

barrique handling and lifting - Flex Lifting mobile lifter

Traction

Manual

Max Height (inch)

131,89"

Column

Swivel 360°

Lifting

Fast lift double action pump

MAIN FEATURES

MAXIMUM CAPACITY (lbs)

1102

Front Dimension (inch)

38,58"

MAX OVERHANG (inch)

80,71"

Lowering

Fine control descent knob

Boom

Manual 4 positions

POPULAR APPLICATIONS & MARKET SEGMENTS

GLASS PANELS

Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.

TRAIN

Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

ROOFTOP

Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

Benefit
Product Brochure
Data Sheet
Video

LOW MAINTENANCE

Our cranes offer long-term performances with a short-term return on investment thanks to their low maintenance costs and reduced downtime, compared to other lifting equipment.

VERSATILE AND FLEXIBLE

Unlike fixed cranes, mobile cranes can move to several plant areas. No license required. Our cranes can get closer to the load even in the presence of obstacles or perimeter protections. They can be equipped with several types of underhooks.

LOW NOISE LEVEL

The integration of noise reduction and soundproofing components makes our cranes suitable for indoor uses. Low noise level at work sites enables workers to concentrate and focus on the task without being distracted by equipment noise during collaborative tasks and/or potentially hazardous situations.
