Cantilever swivel crane 01B2P Product Details

01B2P Attrezzatura di sollevamento contrappesata

01B2P mini gru per sollevamento carichi 200 kg

01B2P gruetta a sbalzo per officine industriali

01B2P WORKSHOP COUNTERBALANCE CRANE

LIFTING CAPACITY 441 LBS

Max Capacity

441 LBS

Max Overhang (inch)

80,71" INCH

Column

JIB ARM SWIVEL 360°

Max Height (inch)

131,89" INCH

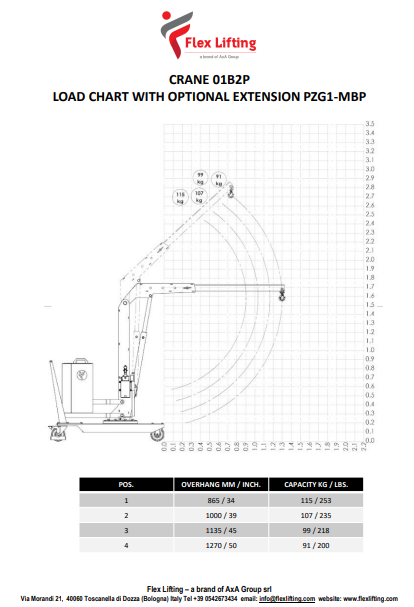

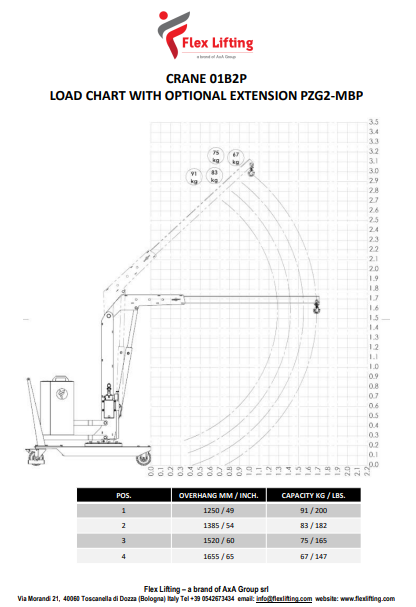

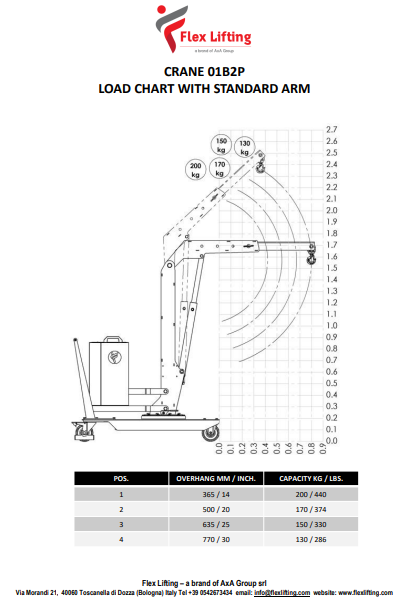

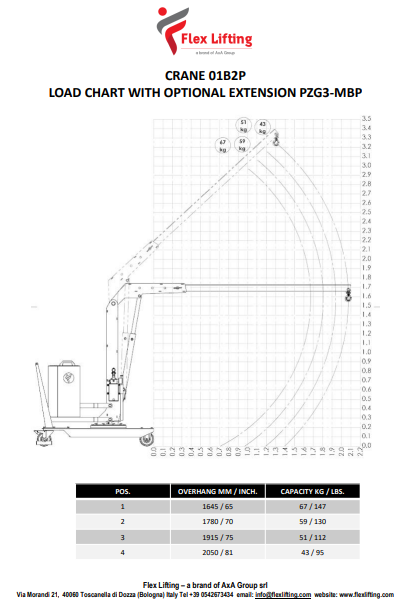

View Load Chart

The counterbalanced crane with slewing arm model 01B2P is part of a wide range of counterbalanced 360° swivel cranes with manual traction, with a maximum capacity up to 441 lbs and outreach up to 80,71”. Hydraulic lever controlled or electric controlled.

They represent the most cost-effective and flexible solution for lifting and transporting loads in several applications such as machining centers and machine tools, delivery to assembly lines, assembly operations, goods handling. Thanks to their compact dimensions they are easily maneuverable even at full load and can be moved effortlessly in confined spaces. All components are made in Italy to ensure the highest construction quality and the absence of defects.

The hydraulic system is equipped with a lock valve that prevents the load from falling in case of accidental breakage of the pipes and a rough valve that prevents overloading of the crane.

They are equipped with 2 high-capacity pivoting wheels with bumper mounts and parking brakes and with 2 fixed front wheels with bearings. The frame is made of painted steel and is equipped at the base with 2 useful forklift supports (to lift and transport the crane in complete safety on long distances. The sturdy push handle can be disassembled. There are also 2 handles to easily rotate the ballast Swivel hook type. Rotating Jib arm lockable every 30°.

Model 01B2P is equipped with a pendant lever for lifting a load at a single speed and operating a progressive descent. This requirement is indispensable when precise accuracy is required during the positioning of the load.

The arm of the counterbalanced crane with slewing arm model 01B2P is extendable in 4 positions and 3 types of optional arm extensions are available to get a maximum outreach of 80,71”.

External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.

Multifunction display showing charge level, battery voltage and operating hour meter.

AVAILABLE UPON REQUEST

Learn more

Product gallery

Gru Mobile Flex Lifting 01B2P Discesa a velocità regolabile

Traction

Manual

Max Height (inch)

131,89"

Column

Swivel 360°

Lifting

Electric at single speed

MAIN FEATURES

MAXIMUM CAPACITY (lbs)

441

Front Dimension (inch)

30,71"

MAX OVERHANG (inch)

80,71"

Lowering

Electric with adjustable and proportional speed

Boom

Manual 4 positions

POPULAR APPLICATIONS & MARKET SEGMENTS

GLASS PANELS

Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.

TRAIN

Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

ROOFTOP

Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

Benefit
Product Brochure
Data Sheet
Video

PRECISE POSITIONING

The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines,etc.

ERGONOMICS

The main goal of ergonomics is to develop and apply the man adaptation techniques to their work and efficient and safe ways in order to optimize the well-being and thus increasing productivity. The implementation of our mobile cranes helps our customers to achieve objective results by carrying out operations with the best ergonomics conditions and by using the most appropriate equipment.

EASY RELOCATION

Because every mini crane model is ready to use and requires no installation, Flexlifting mini cranes can easily be relocated from one site to another location. The machine can be transported with a truck and does not require great human power. The benefit of high return on investment makes mini cranes favorable option for many companies.
