01B2SE_1000 PROFESSIONAL MOBILE CRANE

The model 01B2SE_1000 is a compact and high-performance swivel crane. With a load capacity of 441 lbs and a 360° rotation lockable every 30°, it offers maximum operational flexibility. The reduced front footprint of only 30,71” makes it the ideal choice for applications where space is limited. The counterweight, equipped with two ergonomic handles, and the swivel bearing ensure smooth and safe rotation.

Equipped as standard with nylon wheels: two heavy-duty swivel casters, fitted with shock absorbers and parking brakes to ensure stability and safety even under maximum load conditions. The two fixed front wheels, mounted on high-quality bearings, guarantee precise and smooth maneuverability. The robust and durable powder-coated steel frame is equipped with practical forklift pockets, allowing the crane to be moved safely and easily even over long distances.

The mini crane 01B2SE_1000 is equipped with an electric telescopic boom with a 39,37” stroke. The lifting and lowering of the arm and the extension and retraction of the boom are actuated by a lever connected to a 4-function distributor.

Featuring precise, electrically-controlled movements, this crane offers unparalleled accuracy in load positioning. The controlled descent with safety features and engine-off operation ensures safe and efficient handling.

The hydraulic system is equipped with a lock valve that prevents the load from falling in case of accidental breakage of the pipes and a rough valve that prevents overloading of the crane.

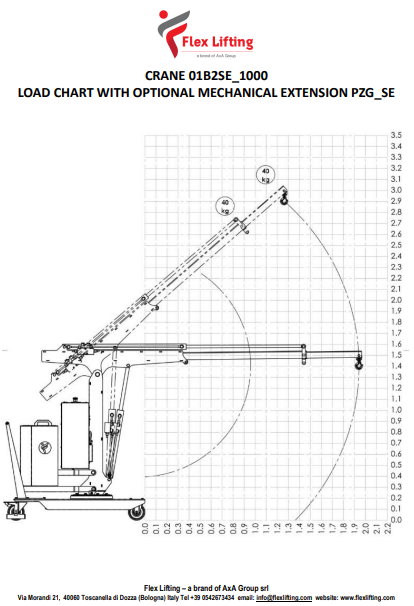

An extension of the boom is available (optional) which allows increasing the reach up to a length of 75,20”.

It represents the most cost-effective and flexible solution for lifting and transporting loads in several applications such as machining centers and machine tools, delivery to assembly lines, assembly operations, goods handling. Thanks to its compact dimensions this counterbalanced crane is easily maneuverable even at full load and can be moved effortlessly in confined spaces. All components are made in Italy to ensure the highest construction quality and the absence of defects.

External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.

Multifunction display showing charge level, battery voltage and operating hour meter.

Model 01B2SE_1000 is the most popular model for awkward placements from the ground onto 3D machines, lathes, over perimeter protections, narrow openings, etc., thanks to its 360° pivoting and in all those applications where there is no space to move the load with a forklift or other large sizes lifting equipment.
