Mobile compact crane 01B5L Product Details

01B5L mini gru manuale a sbalzo contrappesata

01B5L mini gru contrappesata capacità 500 kg

01B5L gru manuale idraulica - soluzione sollevamento mobile per carichi da 500 kg

01B5L gru da officina girevole con trazione manuale

01B5L soluzione di sollevamentto su ruote per sollevamento fino a 500 kg

01B5L attrezzatura di sollevamento mobile per carichi fino a 500 kg

01B5L MOBILE LIFTING EQUIMENT

LIFTING CAPACITY 1102 LBS

Max Capacity

1102 LBS

Max Overhang (inch)

80,71" INCH

Column

JIB ARM SWIVEL 360°

Max Height (inch)

131,89" INCH

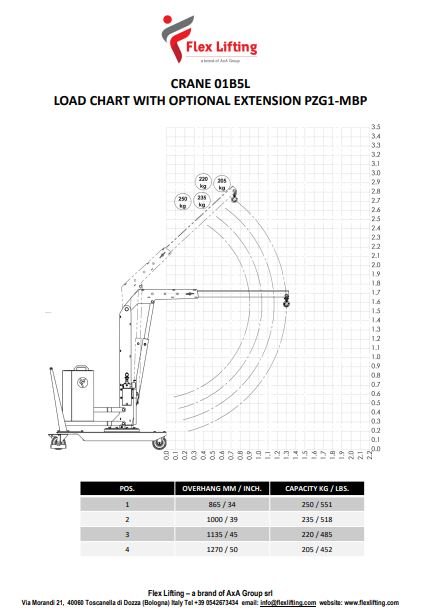

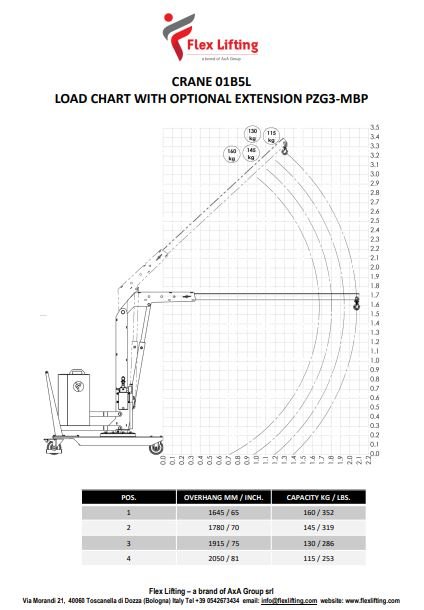

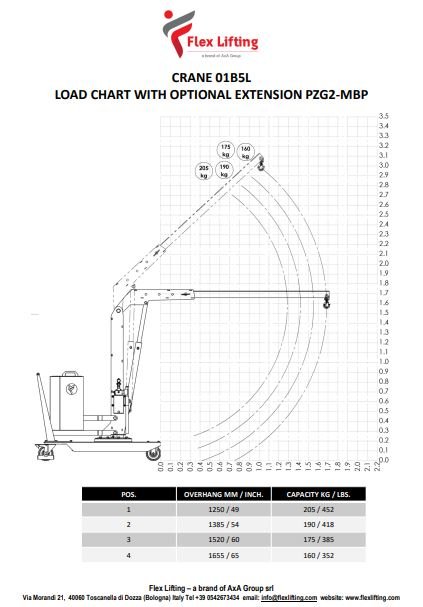

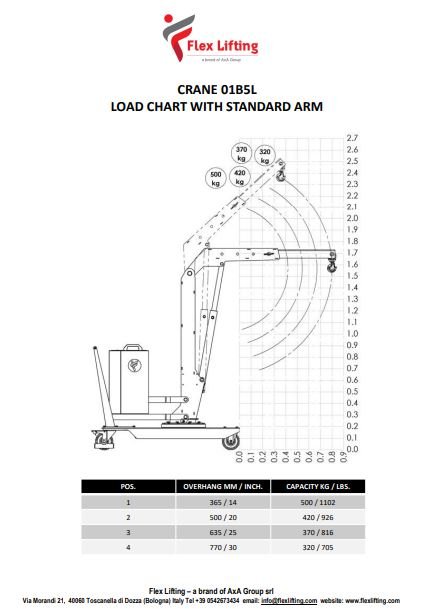

View Load Chart

The 01B5L swivel crane make it possible to lift and move loads up to 1102 lbs. Thanks to its 360° rotation, free or lockable every 30°, it is possible to position loads with maximum precision. The rotation ring, equipped with bearings, guarantees smooth and effortless movements. The rotation of the arm is facilitated thanks to the two ergonomic handles positioned on the ballast.

The position of the control lever has been designed to offer the operator maximum visibility and safe control of the load at every stage of the work.

The 01B5L model is a compact and high-performance crane, characterised by a frontal footprint of just 38,58”, the smallest on the market. The movement system, consisting of 2 high-capacity pivoting wheels with bumper supports and parking brakes and 2 fixed front wheels with bearings, ensures exceptional manoeuvrability. The painted steel frame, the integrated forklift supports, the rotating hook with safety lock and the removable push handle make this crane a versatile and reliable solution for every need.

The up and down movement of the arm is controlled by an ergonomic lever that allows for precise and gradual speed adjustment. The hydraulic system, equipped with a safety valve and overload valve, guarantees maximum protection in all working conditions. The arm, extendable in four positions and further expandable thanks to mechanical extensions, offers a maximum overhang of 80,71”, ensuring flexibility and precision in every operation.

External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.

Multifunction display indicating charge level, battery voltage and operating hour.

AVAILABLE UPON REQUEST

Learn more

Product gallery

mini gru con leva sollevamento e discesa velocità progressiva 01B5L

01B5L gruetta mobile per carichi da 500 kg

Traction

Manual

Max Height (inch)

131,89"

Column

Swivel 360°

Lifting

Electric with adjustable and proportional speed

MAIN FEATURES

MAXIMUM CAPACITY (lbs)

1102

Front Dimension (inch)

38,58"

MAX OVERHANG (inch)

80,71"

Lowering

Electric with adjustable and proportional speed

Boom

Manual 4 positions

POPULAR APPLICATIONS & MARKET SEGMENTS

GLASS PANELS

Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.

TRAIN

Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

ROOFTOP

Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

Benefit
Product Brochure
Data Sheet

PRECISE POSITIONING

The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines,etc.

VERSATILE AND FLEXIBLE

Unlike fixed cranes, mobile cranes can move to several plant areas. No licence required. Our cranes can get closer to the load even in presence of obstacles or perimeter protections. They can be equipped with several types of underhooks.

LOW NOISE LEVEL

The integration of noise reduction and soundproofing components makes our cranes suitable for indoor uses. Low noise level at work sites enables workers to concentrate and focus on the task without being distracted by equipment noise during collaborative tasks and/or potentially hazardous situations.
