Electric mobile crane FLEX G1000DBR Product Details

FLEX G1000DBR gru idraulica contrappesata 1000 kg

FLEX G1000DBR gru ergonomica per sollevamento

FLEX G1000DBR gru contrappesata uso professionale

FLEX G1000DBR gru 1000 kg con contrappeso

FLEX G1000DBR sistema mobile per sollevamento carichi

FLEX G1000DBR apparecchiatura di sollevamento mobile

FLEX G1000DBR ELECTRIC PICK & CARRY SWIVEL CRANE

WITH REMOTE CONTROL

LIFTING CAPACITY 2205 LBS

Max Capacity

2205 LBS

Max Overhang (inch)

94,49" INCH

Column

JIB ARM SWIVEL 220°

Max Height (inch)

160,51" INCH

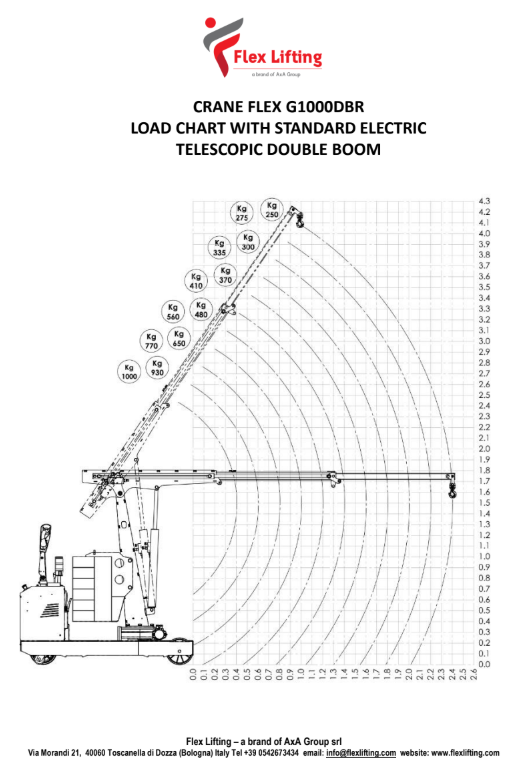

View Load Chart

The FLEX G1000DBR crane is a fully electric slewing crane that can lift loads of up to 2205 lbs.

This mobile lifting equipment is equipped as standard with a double electric extension that allows it to reach an overhang of 94,49” and a steering motor wheel that allows the crane to be moved even in tight spaces.

Equipped with a latest-generation joystick radio control, this crane ensures precise positioning of the load thanks to the continuous modulation of the speed of all movements. The motorized rotation completes the technical features of this model, ideal for applications that require high precision and versatility.

The Flex G1000DBR motorized crane is an all-in-one lifting solution that, thanks to its 220° rotation and telescopic arm, simplifies and optimizes all operations of loading and unloading of molds, equipment of CNC work centers, positioning of sheet metal on plasma cutting machines, maintenance and assembly of components on various types of machinery.

To ensure maximum maneuverability even in tight spaces, this electro-hydraulic crane can be equipped with an even more compact ballast, designed not to exceed the overall dimensions of the machine itself, regardless of the position of the boom.

Standard equipment: sealed and maintenance-free AGM batteries, external battery charger, LED indicator light indicating correct operation and possible overload warning, emergency stop button. The Flex G1000DBR crane is also equipped with a multifunction display that shows the charge level, battery voltage and operating hours.

Safety features:

Dynamic load limiter that prevents overloads and potential accidents. It constantly monitors the load being lifted or moved and automatically limits the operation if the load exceeds the pre-set safety limit.

A block valve is automatically activated in the event of a hydraulic system hose breakage, preventing the uncontrolled descent of the load.

A speed selector is located on the tiller arm, allowing the vehicle speed to be adapted to different operating needs.

Slow mode: limits the maximum speed to 0.9 mph, ideal for precise manoeuvring in tight spaces and delicate handling of loads.
Standard speed: allows a maximum speed of 1.8 mph, suitable for travelling long distances in standard conditions

AVAILABLE UPON REQUEST

Learn more

Product gallery

attrezzatura con braccio telescopico per cambio stampi su macchine cnc

attrezzatura mobile per cambio stampi gru Flex G1000DBR

FLEX G1000DB Gru girevole elettrica da 1 tonnellata per processi di stampaggio

Gru a batteria Flex G1000DBR con telecomando

gru alimentata a batteria Flex G1000DBR completamente elettrica

gru elettrica controbilanciata per officine industriali

Gru elettrica girevole controbilanciata da 1000 kg Flex G1000DBR

gru elettrica girevole portata 1000 kg con radiocomando

Gru elettrica pick and carry Flex G1000DBR da 1000 kg con braccio orientabile

Gru girevole controbilanciata per carichi pesanti Flex G1000DBR 1000 kg

Gru girevole elettrica pick and carry Flex G1000DBR da 1.000 kg

Gru girevole semovente Flex G1000DBR portata 1 ton con radiocomando

Gru idraulica da 1000 kg con contrappesi e braccio orientabile

gru idraulica Flex G1000DBR portata 1000 kg e braccio rotante

Gru industriale elettrica per carichi pesanti Flex G1000DBR

Gru mobile elettrica per carichi da 1000 kg

Gru motorizzata con sollevamento elettrico Flex G1000DBR

gru motorizzata Flex G1000DBR portata 1 ton con braccio rotante

mini gru motorizzata pick & carry per carichi fino a 1000 kg

sollevatore mobile ergonomico gru da 1000 kg Flex G1000DBR

veicolo di sollevamento elettrico per 1000 kg - gru Flex G1000DBR

veicolo di sollevamento mobile idraulico Flex G1000DBR

Veicolo sollevatore idraulico mobile Flex G1000DBR

Traction

Electric. Slow/fast speed

Max Height (inch)

160,51"

Column

Swivel 220°

Lifting

Electric with adjustable and proportional speed

MAIN FEATURES

MAXIMUM CAPACITY (lbs)

2205

Front Dimension (inch)

38,98"

MAX OVERHANG (inch)

94,49"

Lowering

Electric with adjustable and proportional speed

Boom

Electric with adjustable and proportional speed

POPULAR APPLICATIONS & MARKET SEGMENTS

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas, etc.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibility, making them a common choice for companies involved in product manufacturing and testing.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobile cranes to bypass ground obstacles, where traditional workshop cranes cannot access due to their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

Benefit
Product Brochure
Data Sheet
Video

PRECISE POSITIONING

The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines,etc.

ERGONOMICS

The main goal of ergonomics is to develop and apply the man adaptation techniques to their work and efficient and safe ways in order to optimize the well-being and thus increasing productivity. The implementation of our mobile cranes helps our customers to achieve objective results by carrying out operations with the best ergonomics conditions and by using the most appropriate equipment.

VERSATILE AND FLEXIBLE

Unlike fixed cranes, mobile cranes can move to several plant areas. No licence required. Our cranes can get closer to the load even in presence of obstacles or perimeter protections. They can be equipped with several types of below the hook accessories.
The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines, etc.
