Portable lifting crane GZ1000B Product Details
GZ1000B PORTABLE LIFTING DEVICE
LIFTING CAPACITY 2205 LBS
Max Capacity
2205 LBS
Max Overhang (inch)
78,74" INCH
Column
FIXED JIB ARM
Max Height (inch)
119,29" INCH
The portable crane lifting solution model GZ1000B is part of a complete range of counterbalanced cranes with manual traction, with a maximum capacity up to 2205 lbs and outreach up to 78,74”.
Hydraulic lever controlled fast lift double action pump or electric controlled. They represent the most cost-effective and flexible solution for lifting and transporting loads in several applications such as machining centers and machine tools, delivery to assembly lines, assembly operations, goods handling. Thanks to their minimum frontal footprint of just 31,50” they can be moved in narrow lanes and spaces and are easily maneuverable even at full load without efforts.
All components are made in Italy to ensure the highest construction quality and the absence of defects. The hydraulic system is equipped with a lock valve that prevents the load from falling in case of accidental breakage of the pipes and a rough valve that prevents overloading of the crane.
The tiller arm of this portable crane lifting solution is equipped with gas spring and double wheels Ø 7,87” with ball bearings and braking system; 2 fixed front wheels Ø 9,84” with bearings to make it easy to move. The frame is made of painted steel and is equipped at the base with 2 useful forklift supports to lift and transport the crane safely on long distances. 360 ° swivel hook type.
Model GZ1000B, portable crane lifting solution, is equipped with a single speed lift/lower system controlled by pendant push button with emergency stop.
External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.
Multifunction display showing charge level, battery voltage and operating hour meter.

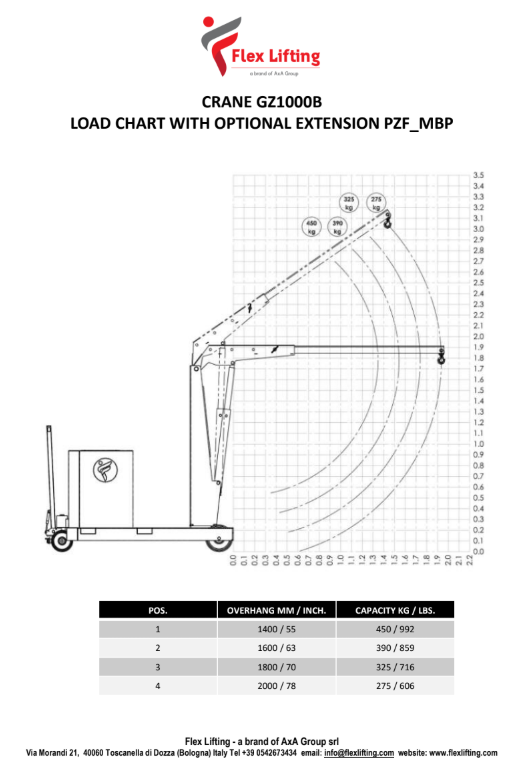

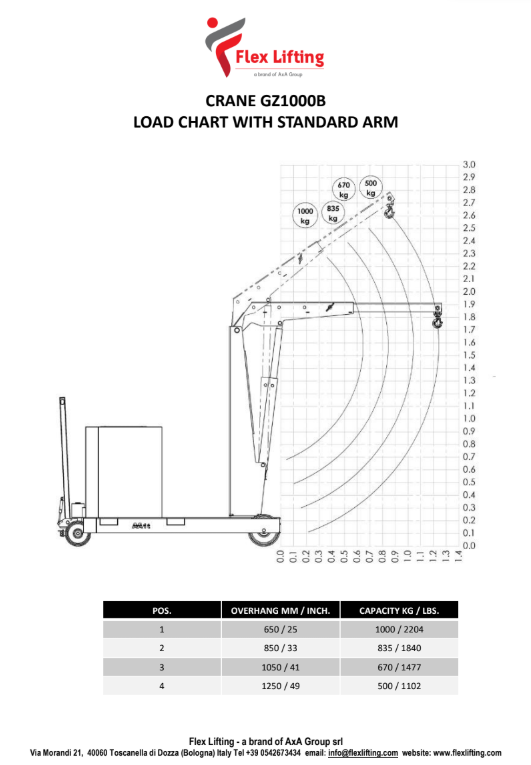

The arm is extendable in 4 positions and an optional arm extension is available to get a maximum outreach of 78,74”.
This crane is a useful lifting solution to increase safety at the workplace and avoid injuries caused by manual handling of loads.
AVAILABLE UPON REQUEST
Product gallery
Traction
Manual
Max Height (inch)
119,29"
Column
fixed
Lifting
Electric at single speed
MAIN FEATURES
MAXIMUM CAPACITY (lbs)
2205
Front Dimension (inch)
31,50"
MAX OVERHANG (inch)
78,74"
Lowering
Electric at single speed
Boom
Manual 4 positions
POPULAR APPLICATIONS & MARKET SEGMENTS
GLASS PANELS
Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.
PLASTIC INJECTION PROCESSES
Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.
TESTING
Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.
MAINTENANCE
Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.
TRAIN
Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.
ASSEMBLY LINE
Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.
PICKING
Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.
ROOFTOP
Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.
CNC MACHINES
Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.
PRECISE POSITIONING
The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines, etc.
ERGONOMICS
The main goal of ergonomics is to develop and apply the man adaptation techniques to their work and efficient and safe ways in order to optimize the well-being and thus increasing productivity. The implementation of our mobile cranes helps our customers to achieve objective results by carrying out operations with the best ergonomics conditions and by using the most appropriate equipment.
EASY RELOCATION
Because every mini crane model is ready to use and requires no installation, Flexlifting mini cranes can easily be relocated from one site to another location. The machine can be transported with a truck and does not require great human power. The benefit of high return on investment makes mini cranes favorable option for many companies.
GZ1000B-en-us
(pdf, 0KB)
GZ1000B-en-us
(pdf, 0KB)
Optional and upgrades
B100LIT12 Upgrade to LITHIUM battery 100A 12V
HSL100 – Upgrade to self locking hook
PLE Lifting eye bolts kit
