Ergonomic mobile crane ORBIT 200ER Product Details

ORBIT 200ER ELECTRIC LIFTING SYSTEM

WITH REMOTE CONTROL

LIFTING CAPACITY 441 LBS

Max Capacity

441 LBS

Max Overhang (inch)

80,71" INCH

Column

JIB ARM SWIVEL 210°

Max Height (inch)

140,55" INCH

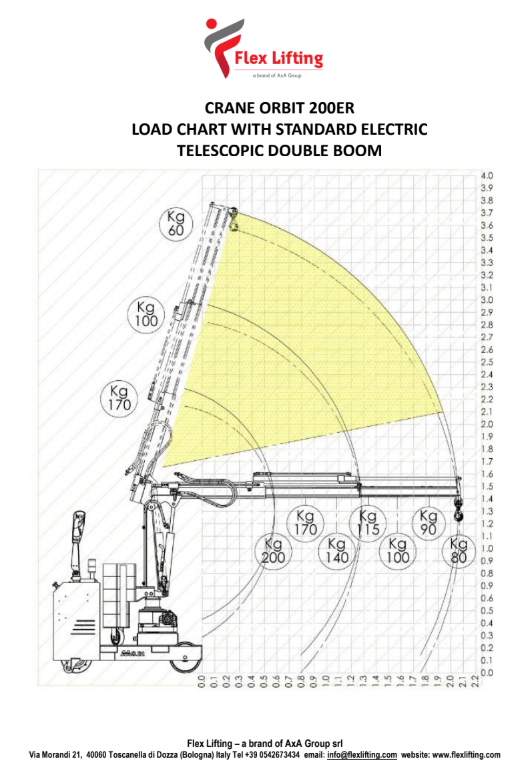

View Load Chart

The ORBIT 200ER crane is a fully electric slewing crane that can lift loads of up to 441 lbs.

This mobile lifting equipment is equipped as standard with a double electric extension that allows to reach a 78,74” overhang and a steering motor wheel that offers optimal maneuverability even in work environments with limited space.

The remote control system, equipped with a potentiometer, allows the operator to control all movements of the telescopic arm with extreme precision and graduality, from lifting to extension. The electric rotation completes the versatility of this crane, making it ideal for lifting operations in tight spaces.

The ORBIT 200ER motorized crane is an all-in-one lifting solution that, thanks to its 210 ° rotation and telescopic arm, simplifies and optimizes all operations of loading and unloading of molds, equipment of CNC work centers, positioning of sheet metal on plasma cutting machines, maintenance and assembly of components on various types of machinery.

The Orbit 200ER electro-hydraulic crane is the ideal solution for those who need maximum maneuverability in limited spaces. Its limited width, 31,50”, and the rotation of the arm-ballast system without additional encumbrances, make it so unique.

The ORBIT 200ER electro-hydraulic crane is equipped with lever controls to activate the following functions with adjustable and proportional speed: lifting, lowering, extension, retraction and rotation of the arm.

Standard equipment: sealed and maintenance-free AGM batteries, external battery charger, LED indicator light indicating correct operation and possible overload warning, emergency stop button. The ORBIT 200ER crane is also equipped with a multifunction display that shows the charge level, battery voltage and operating hours.

Safety features:

Dynamic load limiter that prevents overloads and potential accidents. It constantly monitors the load being lifted or moved and automatically limits the operation if the load exceeds the pre-set safety limit.

A block valve is automatically activated in the event of a hydraulic system hose breakage, preventing the uncontrolled descent of the load.

A speed selector is located on the tiller arm, allowing the vehicle speed to be adapted to different operating needs.

Slow mode: limits the maximum speed to 0.9 mph, ideal for precise manoeuvring in tight spaces and delicate handling of loads.
Standard speed: allows a maximum speed of 1.8 mph, suitable for travelling long distances in standard conditions

AVAILABLE UPON REQUEST

Learn more

Product gallery

Gru pick and carry Orbit 200 soluzioni di sollevamento e movimentazione gru portatili

Apparecchiature di sollevamento gru contrappesata modello Orbit 200

Soluzioni di sollevamento ergonomiche mini gru modello Orbit 200 by Flex Lifting

Mini gru idraulica modello Orbit 200 apparecchiature di sollevamento

Lifter for barriques and barrels - equipment for wineries and distilleries

Traction

Electric. Slow/fast speed

Max Height (inch)

140,55"

Column

Swivel 210°

Lifting

Electric with adjustable and proportional speed

MAIN FEATURES

MAXIMUM CAPACITY (lbs)

441

Front Dimension (inch)

31,50"

MAX OVERHANG (inch)

80,71"

Lowering

Electric with adjustable and proportional speed

Boom

Electric with adjustable and proportional speed

POPULAR APPLICATIONS & MARKET SEGMENTS

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas, etc.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibility, making them a common choice for companies involved in product manufacturing and testing.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobile cranes to bypass ground obstacles, where traditional workshop cranes cannot access due to their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

Benefit
Product Brochure
Data Sheet

NO INSTALLATION REQUIRED

All our cranes are counterbalanced which means that a load can be picked & carried without using outriggers. Just turn the key on to get the cranes working. Our cranes come fully assembled and are ready to use. No installation = zero additional costs and waste of time.

SAFETY AT THE WORKPLACE

All the industries do have safety risks but the management should devote their time to think and strategize the things that what safety precautions are required in their company to make sure that their workers are safe enough for all the time. Our cranes are the appropriate tool to avoid all risks involved with manual handling of loads.

PRECISE POSITIONING

The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines,etc.
