01B2SER_400 ERGONOMIC MOBILE LIFTER

The 01B2SER_400 counterbalanced swivel crane has been designed to be easy to use and safe. The ballast with ergonomic handles and the bearing slewing ring ensure smooth and effortless rotation. The 441 lbs load capacity and 360° rotation make it a versatile and reliable tool for a wide range of applications.

Thanks to the push-button radio control equipped with a potentiometer, the 01B2SER_400 mini crane offers millimetric precision in the lifting, lowering and extension movements of the boom.

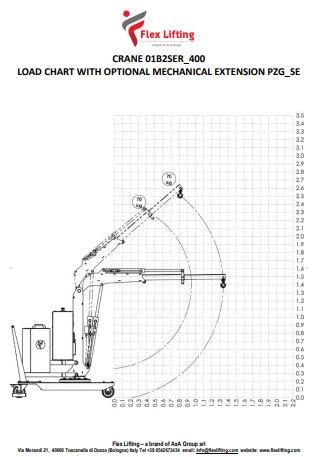

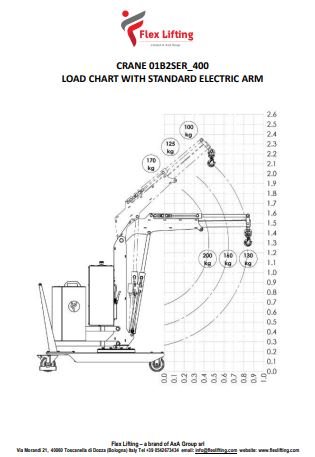

The 01B2SER_400 mini crane is equipped with an electric extension with a stroke of 15,75” and, with the addition of a mechanical extension available as an optional, it can reach a maximum overhang of 51,65”.

The crane is equipped with four nylon wheels: two pivoting, equipped with bumpers and parking brake, and two fixed mounted on ball bearings. This configuration ensures exceptional stability and precise maneuverability even under heavy load conditions. The frame, made of painted steel for greater resistance to corrosion, is equipped with specific supports for lifting with a forklift, making it easy to move the crane in any working environment.

The hydraulic system is equipped with a lock valve that prevents the load from falling in case of accidental breakage of the pipes and a rough valve that prevents overloading of the crane.

It represents the most cost-effective and flexible solution for lifting and transporting loads in several applications such as machining centers and machine tools, delivery to assembly lines, assembly operations, goods handling. Thanks to its compact dimensions this counterbalanced crane is easily maneuverable even at full load and can be moved effortlessly in confined spaces. All components are made in Italy to ensure the highest construction quality and the absence of defects.

External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.

Multifunction display showing charge level, battery voltage and operating hour meter.

Model 01B2SER_400 is the most popular model for awkward placements from the ground onto 3D machines, lathes, over perimeter protections, narrow openings, etc., and thanks to its 360° rotation, in all those applications where there is no space to move the load with a forklift or other large sizes lifting equipment.
