Counterbalance mobile crane GZ1000BP Product Details

GZ1000BP PORTABLE CANTILEVER HOIST

LIFTING CAPACITY 2205 LBS

Max Capacity

2205 LBS

Max Overhang (inch)

78,74" INCH

Column

FIXED JIB ARM

Max Height (inch)

119,29" INCH

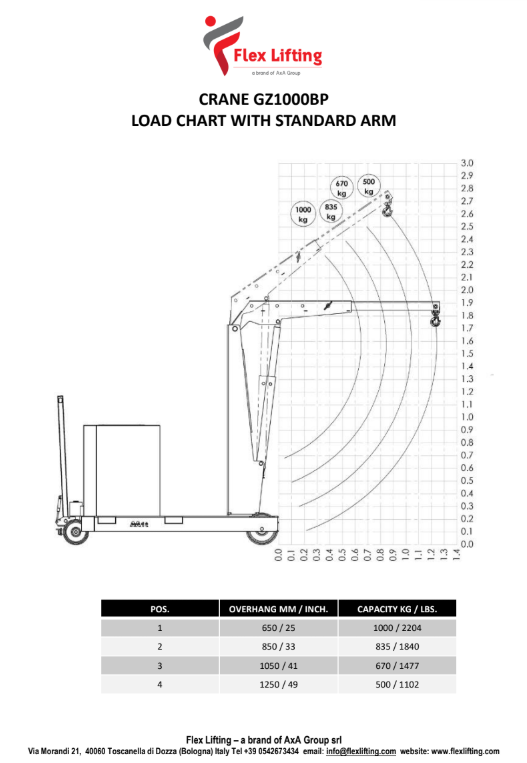

View Load Chart

The GZ1000BP allows lifting and handling of loads up to 2205 lbs.

This model is easy to manoeuvre safely even in narrow aisles and confined spaces thanks to its compact design (31,50” wide), articulated steering drawbar with gas spring and Ø 7,87” double wheels with ball bearings and braking system, Ø 9,84” front wheels with ball bearings.

The robust and durable powder-coated steel frame is equipped with practical forklift pockets, allowing the crane to be moved safely and easily even over long distances.

It is equipped with a pendant hand control for single speed electric ascent and electric descent with adjustable speed using a roller joystick. Descent is adjustable with extreme accuracy, which is essential when the load has to be positioned with great precision.

There is also an emergency stop on the control panel. The hydraulic system is equipped with a block valve to prevent the load from falling in the event of an accidental hose rupture and a relief valve to prevent the crane from being overloaded.

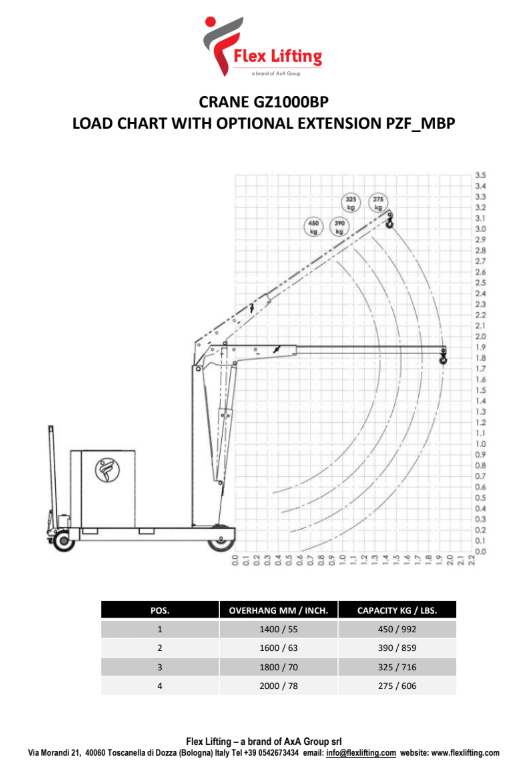

The boom can be extended to 4 positions and an extension arm accessory (optional) is available to increase the overhang to a maximum length of 78,74”.

External battery charger. Powered by maintenance free AGM sealed battery, this crane can be also equipped with Lithium battery.

Swivel hook with safety lock. Sturdy removable push handle. Multifunction display showing charge level, battery voltage and operating hour meter.

The GZ1000BP crane is an optimal solution for the prevention and safety of operators when handling all types of loads.

AVAILABLE UPON REQUEST

Learn more

Product gallery

Gru Mobile Flex Lifting GZ1000B solleva e movimenta carichi fino a 1000 kg

Traction

Manual

Max Height (inch)

119,29"

Column

fixed

Lifting

Electric at single speed

MAIN FEATURES

MAXIMUM CAPACITY (lbs)

2205

Front Dimension (inch)

31,50"

MAX OVERHANG (inch)

78,74"

Lowering

Electric with adjustable and proportional speed

Boom

Manual 4 positions

POPULAR APPLICATIONS & MARKET SEGMENTS

GLASS PANELS

Using counterbalance cranes is an efficient and safe solution for installing glass panels, whether in building construction, renovation or architectural projects.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibiity, making them a common choice for companies involved in product manufacturing and testing.

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas,etc.

TRAIN

Cantilever cranes are frequently used in the railway industry for servicing and maintaining trains. They are used for replacing components such as wheels, brakes, suspensions and engines. Cranes make it easy to lift and precisely position these components.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobiles cranes to bypass ground obstacles, where traditional workshops cranes cannot access due their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

ROOFTOP

Mini mobile cranes provide the lifting power needed while being compact enough to be transported and used in a variety of situations, making them indispensable for many jobs at height.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

Benefit
Product Brochure
Data Sheet
Video

LOW MAINTENANCE

Our cranes offer long-term performances with a short-term return on investment thanks to their low maintenance costs and reduced downtime, compared to other lifting equipment.

VERSATILE AND FLEXIBLE

Unlike fixed cranes, mobile cranes can move to several plant areas. No licence required. Our cranes can get closer to the load even in presence of obstacles or perimeter protections. They can be equipped with several types of below the hook accessories.

LOW NOISE LEVEL

The integration of noise reduction and soundproofing components makes our cranes suitable for indoor uses. Low noise level at work sites enables workers to concentrate and focus on the task without being distracted by equipment noise during collaborative tasks and/or potentially hazardous situations.
