Heavy duty crane OMNIA 2TR Product Details

OMNIA 2TR sistema di sollevamento industriale

OMNIA 2TR gru con contrappesi a batteria capacità 2000 kg

OMNIA 2TR gru idraulica per officine industriali

OMNIA 2TR gru motorizzata con sollevamento elettrico

OMNIA 2TR gru pick & carry con radiocoomando e sfilo elettrico triplo

OMNIA 2TR OMNIA 2TR gru elettro idraulica per carichi a sbalzo

OMNIA 2TR sistema di sollevamento elettrico industriale

OMNIA 2TR ELECTRIC SELF-PROPELLED CRANE

WITH REMOTE CONTROL

LIFTING CAPACITY 4409 LBS

Max Capacity

4409 LBS

Max Overhang (inch)

120,75" INCH

Column

FIXED JIB ARM

Max Height (inch)

213,19" INCH

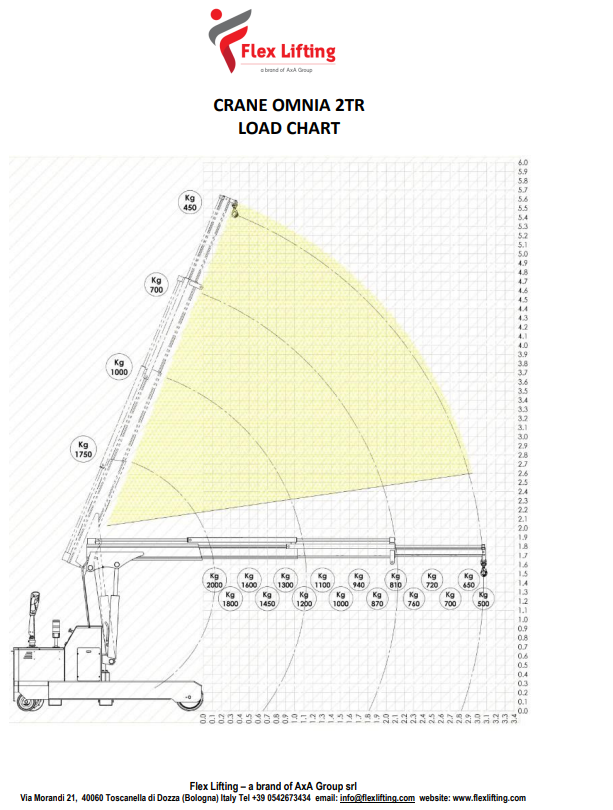

View Load Chart

The electric mobile lifting crane OMNIA 2TR is a Full Electric crane that can reach a max lifting capacity of 4409 lbs.

The OMNIA 2TR is equipped with a triple electric boom that reaches a free overhang of over 118,11”.

One of the key features of this Pick & Carry crane is the ability to move even with the load hanging as it does not have stabilizers.

The OMNIA 2TR is the ideal crane for lifting heavy loads and, thanks to its extreme maneuverability, offers maximum flexibility to operate in any conditions, even in limited spaces. The exceptional steering angle and the ability to rotate on itself make it perfect for working in complex environments and limited spaces.

Standard features: maintenance-free sealed AGM batteries, external battery charger, LED stack tower lights indicating correct crane operation and overload warning, emergency stop. The OMNIA 2TR crane also has a multifunctional display showing charge level, battery voltage and hours of operation.

Lifting, lowering, extending and retracting the telescopic arm are controlled via a joystick radio control which allows you to manage the speed and proportionality of all movements of the crane arm.

Safety features:

Dynamic load limiter that prevents overloading and potential accidents. It continuously monitors the load being lifted or handled and automatically limits the operation if the load exceeds the predetermined safe limit.

A block valve is activated automatically in the event of a hydraulic hose rupture, preventing uncontrolled load descent.

The tiller handle is equipped with a speed selector that allows the speed of the vehicle to be adapted to different operating requirements. Two positions are available:

Slow mode: Limits the maximum speed to 0.9 mph, ideal for precise manoeuvring in confined spaces and gentle handling of loads.
Standard speed: Allows a maximum speed of 1.8 mph, suitable for travelling long distances in standard conditions

OMNIA 2TR can be equipped with any type of lifting accessories for specific applications: lifting suction cups, lifting beams, clamps, tilters, permanent magnets, etc.

AVAILABLE UPON REQUEST

Learn more

Product gallery

OMNIA 2TR gru contrappesata con radiocomando

gru mobile industriale capacità 2 tonnellate

Omnia 2TR electric pick and carry crane with radio control

Omnia 2TR mobile electro-hydraulic crane with telescopic boom, lifting height 5.5 meters

Traction

Electric. Slow/fast speed

Max Height (inch)

213,19"

Column

fixed

Lifting

Electric with adjustable and proportional speed

MAIN FEATURES

MAXIMUM CAPACITY (lbs)

4409

Front Dimension (inch)

43,94"

MAX OVERHANG (inch)

120,75"

Lowering

Electric with adjustable and proportional speed

Boom

Electric with adjustable and proportional speed

POPULAR APPLICATIONS & MARKET SEGMENTS

MAINTENANCE

Cantilever cranes are often used in the aviation industry for specific aircraft-related tasks. For handling engines, dismantling seats, raising sensitive components such as radars or antennas, etc.

TESTING

Counterbalance cranes are versatile and precise tools for positioning components on test benches. They offer benefits in safety, productivity and flexibility, making them a common choice for companies involved in product manufacturing and testing.

CNC MACHINES

Using mini mobile cranes for tool changing and positioning on CNC machines improves the efficiency, safety and precision of machining operations. They have become essential equipment in many high-precision production workshops.

ASSEMBLY LINE

Using mini mobile cranes along assembly lines can improve production efficiency, reduce the risk of accidents, and enable loads to be handled precisely in spaces where other equipment can't be maneuvered. This helps optimize manufacturing operations.

PICKING

Using mini mobile cranes to bypass ground obstacles, where traditional workshop cranes cannot access due to their stabilizing legs, offers a practical and effective solution in various scenarios. They are extremely useful tools for lifting tasks in hard-to-reach spaces.

PLASTIC INJECTION PROCESSES

Using counterbalance cranes to change molds is a common practice in the manufacturing industry, especially in the production of plastic parts, die-cast products and other molding processes.

Benefit
Product Brochure
Data Sheet
Video

PRECISE POSITIONING

The use of mini cranes, especially the ones equipped with a progressive speed control, lead to a better accuracy when positioning a load or a component that must be handled with care such as molds, engines, etc.

ERGONOMICS

The main goal of ergonomics is to develop and apply the man adaptation techniques to their work and efficient and safe ways in order to optimize the well-being and thus increasing productivity. The implementation of our mobile cranes helps our customers to achieve objective results by carrying out operations with the best ergonomics conditions and by using the most appropriate equipment.

EASE OF USE

Thanks to their intuitive design our cranes are easy to use and do not require an extensive staff training. An user friendly solution that improves efficiency and productivity at once.
